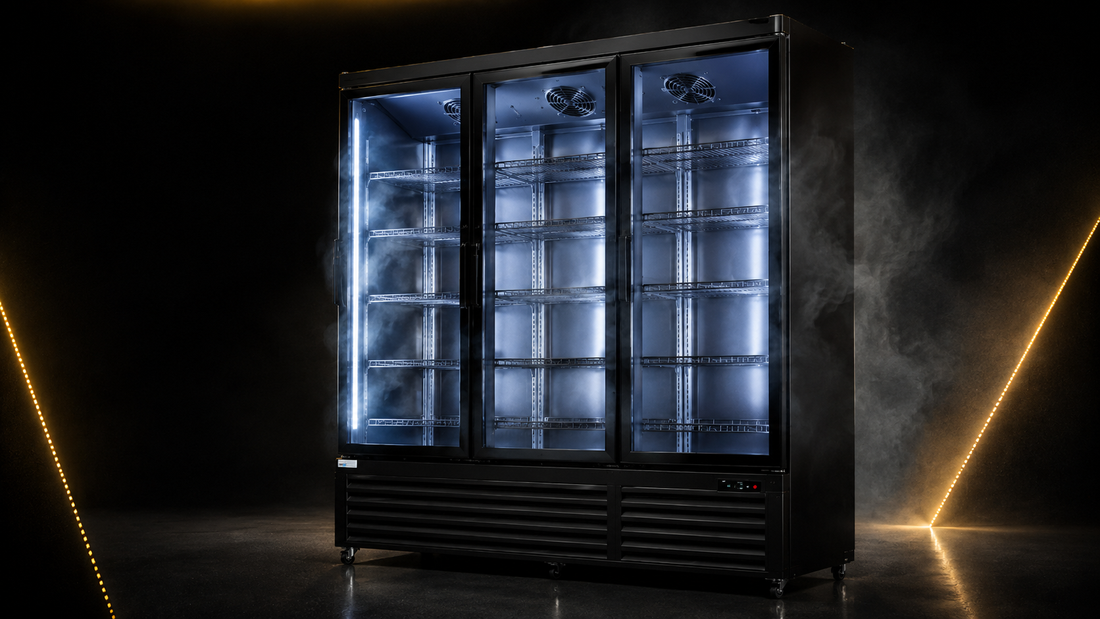

Yes, you need a dedicated electrical circuit for a 3-door commercial freezer. A 3-door commercial freezer draws a heavy electrical load—especially when the compressor starts up and during automatic electric defrost cycles. Sharing a branch circuit with other kitchen appliances or refrigeration units will cause nuisance breaker trips, potential compressor failure, and costly inventory spoilage.
### Typical Electrical Specifications for 3-Door Freezers
* **Voltage:** Most standard self-contained 3-door reach-in commercial freezers in North America run on either **115V / 60Hz** or **208–230V / 60Hz** single phase.
* **Dedicated Circuit Amperage:** Requires a dedicated **20-Amp** (or 30-Amp for higher voltage commercial units) breaker.
* **Plug Type:** 115V models typically require a **NEMA 5-20P** plug (one horizontal prong, one vertical prong), which will not fit into a standard 15-Amp household outlet. 208–230V units typically use a **NEMA 6-20P** or **NEMA L14-20P** twist-lock plug.
### Why a Dedicated Circuit is Mandatory
1. **Defrost Cycle Power Spikes:** Commercial freezers periodically activate built-in electric heating elements to melt frost off evaporator coils. This occurs simultaneously with internal fans or cycling compressors, pushing amperage close to circuit limits.
2. **High Starting Amps (Locked Rotor Amps):** When the large compressor kicks in, the momentary surge current can be 3 to 5 times higher than the running load.
3. **Insurance & Warranty Compliance:** Manufacturer warranties and Canadian Electrical Code (CEC) standards require commercial refrigeration equipment to be installed on dedicated, non-GFI/non-shared circuits.
